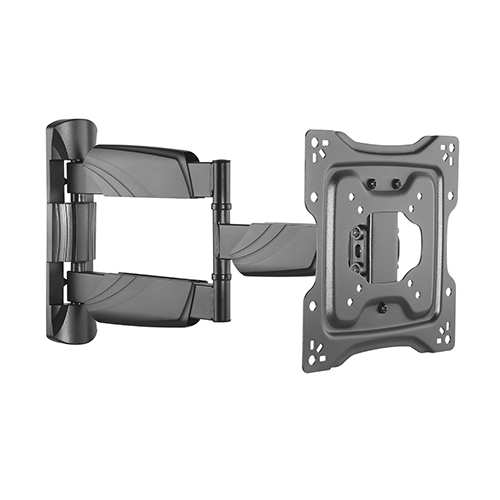

Brateck Elegant Full-Motion TV Wall Mount For 23"-42" up to 35KG LPA50-223

Brateck Elegant Full-Motion TV Wall Mount For 23"-42" up to 35KG

FEATURES:

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Cable Management: keeps everything organized

SPECIFICATIONS

Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size: 40x20x1.5mm (1.6"x0.79"x0.059")
Surface Finish: Powder Coating
Color: Fine Texture Black

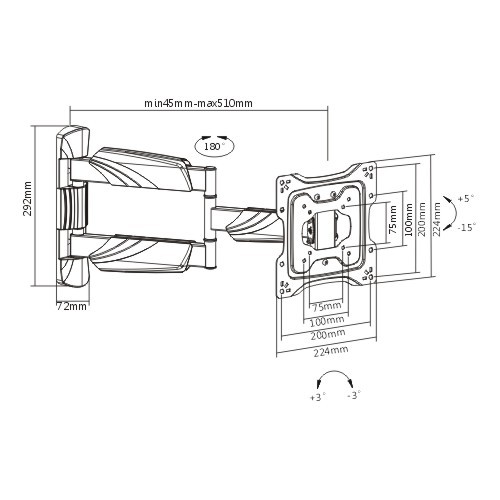

Dimensions: 224x292x510mm (8.8"x11.5"x20.1")
Fit Screen Size: 23"-42"
Fit Curved TV: No
Mounting Hole Pattern: VESA Only
VESA Compatible: 75x75,100x100,200x100,200x200
Max. Mounting Hole: 200x200
Weight Capacity: 35kg (77lbs)
Strength Tested: 4 Times Approved
Profile: 45~510mm (1.8"~20.1")
Tilt Range: ＋5°～-15°
Swivel Range: +90°~-90°
Screen Level: +3°~-3°
Screen Freely Tilting: No
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: Yes
Anti-theft: No
Bubble Level: No
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Certification: UL
