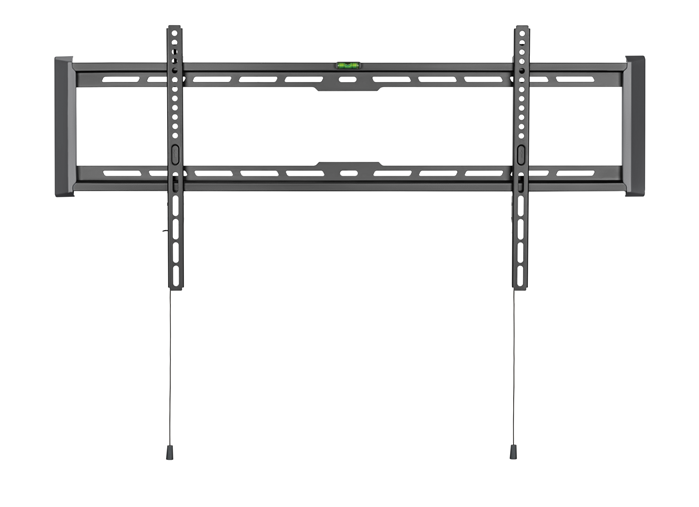

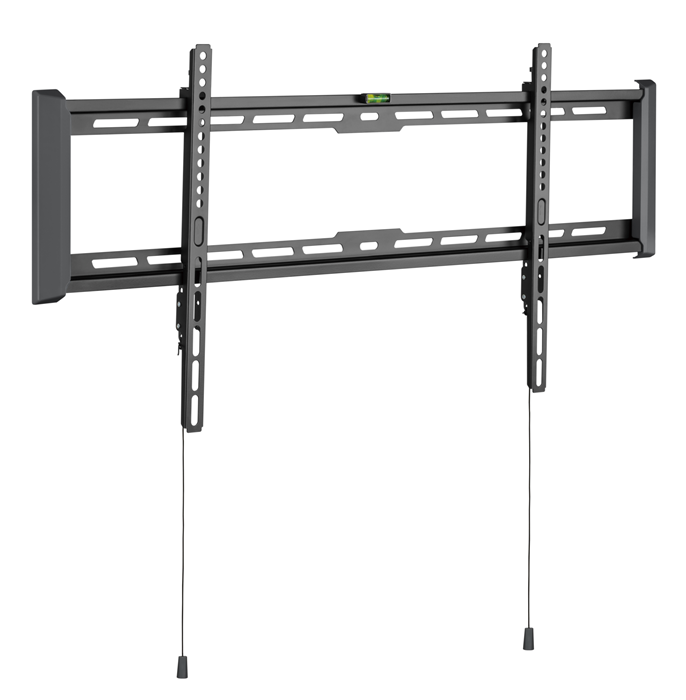

Brateck LP77-48F Ultra-Slim and Heavy-Duty For 43"-90" TV Wall Mount

FEATURES:

●Leveling adjustments: allow TV to be perfectly positioned after hanging

●Ultra-slim design

●Decorative Covers: for a more elegant look

●Heavy-Duty Construction: provides extra strength and durability

●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

●Bubble level included

●Magnetic Strap End: hides itself when not in use.

SPECIFICATIONS

Product Category: Fixed TV Wall Mount

Rank: Standard

Material: Steel, Plastic

Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.059" cold-rolled sheet)

Surface Finish: Powder Coating

Color: Matte Black

Dimensions: 27x970x430mm (1.1"x38.2"x16.9")

Fit Screen Size: 43"-90"

Fit Curved TV: Yes

Mounting Hole Pattern: VESA & Universal

VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400

Max. Mounting Hole: 868x405

Weight Capacity: 75kg (165lbs)

Strength Tested: 4 Times Approved

Profile: 27mm (1.1")

Screen Level: 8mm

Tilt Range: +4°~-10°

Screen Level: 8mm

Screen Freely Tilting: No

Installation: Solid Wall,Double Stud(406mm/450mm/600mm)

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

Direction Indicator: Yes

Bubble Level: Hook-on Bubble Level(Included in Components Package)

Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
